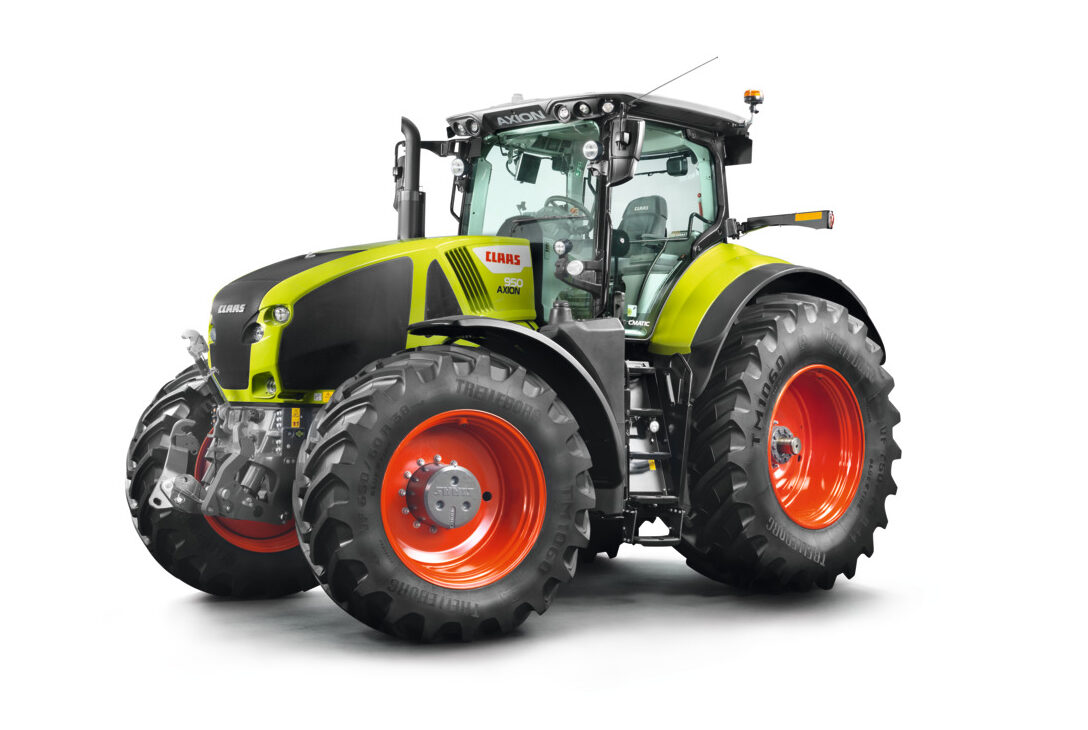

The AXION tractor series

CMATIC TRANSMISSION

• Forget everything you thought you knew about continuously variable tractor transmissions. CMATIC from CLAAS will change your mind forever.

•  Our continuously variable transmission increases your efficiency.

• The machine operates at the optimum speed at all times, autonomously — ensuring genuinely impressive ride comfort, yet simple operation. So you can focus all your attention on the job at hand and benefit from long-lasting transmission quality.

• The available drive power can be used effectively at speeds from 0.03 to 31 mph (0.05 to 50 km/h). The high level of mechanical power transmission also delivers outstanding driving force in reverse. What’s more, every gear ratio can be used at every engine speed, giving AXION 900 tractors enormous potential for use all year round.

CAB COMFORT AND SUSPENSION

• CEBIS version with unique operation thanks to CMOTION multifunction control lever, 12″ CEBIS display with touchscreen, electronic spool valves, CSM headland management, field and implement management.

• Four suspension points mean that the cab is fully isolated from the chassis, preventing impacts and vibration from reaching the operator. Longitudinal and lateral struts join the suspension points and keep the cab stable when turning corners or braking. The entire suspension system is completely maintenance-free.

• PROACTIV front axle suspension –— complete comfort automatically. The suspension adjusts to tractor loading and automatically remains in the central position. Changes in load, due to braking and turning maneuvers, are also compensated for. Parallelogram axle suspension and 3 in spring travel guarantee a smooth ride.

• GPS PILOT with S10 and S7 touchscreen terminal.

• TIM (Tractor Implement Management) when the AXION is combined with the QUADRANT or CARGOS.

• Premium seat includes active seat ventilation and heating, make making the seat feel comfortable whatever the weather; semi-active suspension adjusts automatically to the weight of the driver, and a longitudinal and lateral horizontal suspension.

CLAAS POWER SYSTEMS

• Full engine power available at all forward speeds and for all applications.

• Low-speed concept: maximum output, maximum torque and maximum top speed at a much lower engine speed reduce operating costs significantly.

• Exceptional CMATIC transmission control: dynamic, smooth and fuel-efficient.

• Up to 95% of maximum engine output available to the PTO in 1,000 ECO mode at 1,600 engine rpm

• Up to 58 gpm hydraulic capacity and eight electronic spool valves.

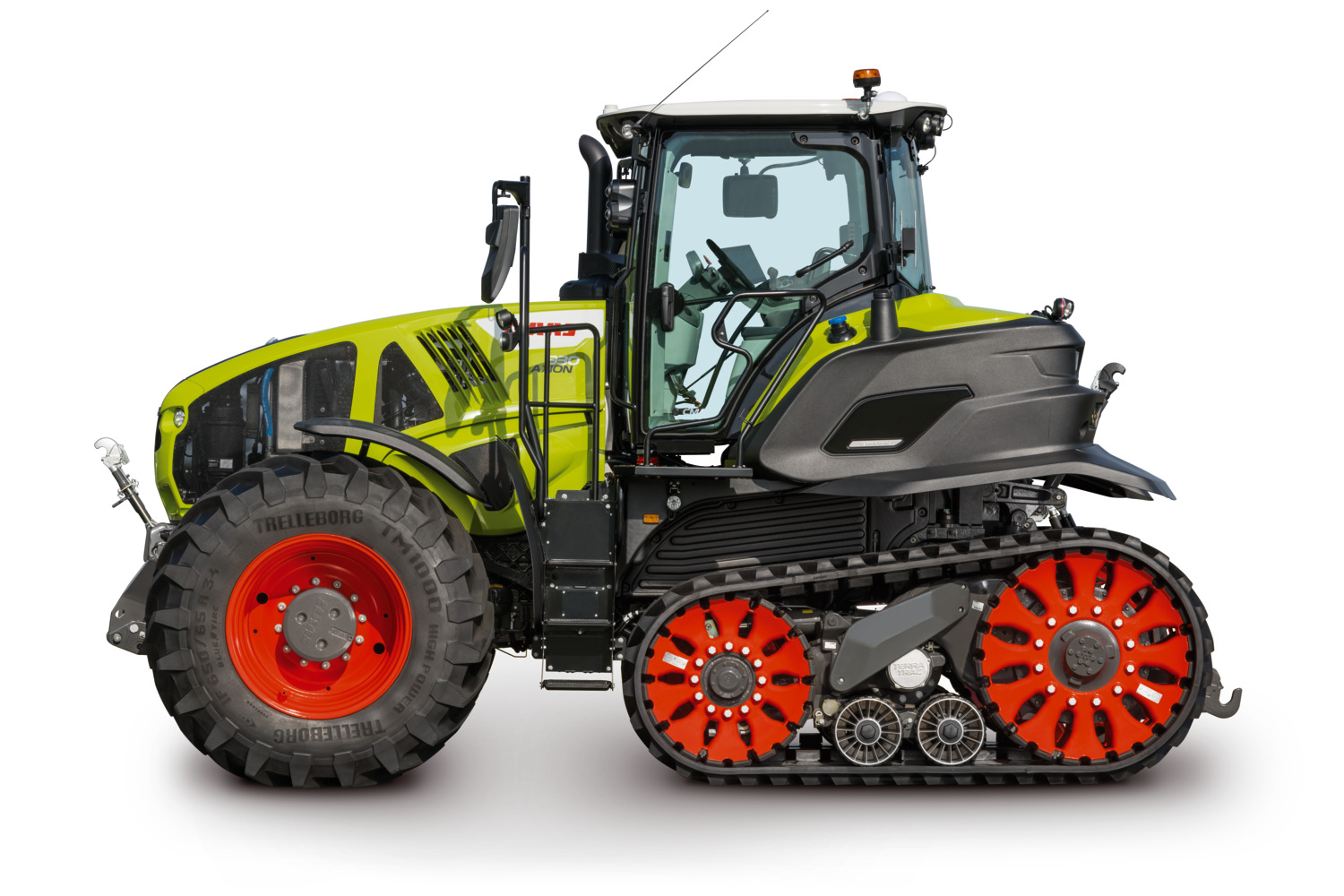

AXION 900 TERRA TRAC technology

15% more traction.

The long wheelbase and front axle provide effective directional stability. Both track units deliver their full traction potential at all times, even under varying soil conditions.

50% less soil pressure.

The vehicle’s weight distribution and the implement’s drawbar load have no effect on the behavior of the TERRA TRAC track units. Their oscillating motion keeps the track parallel to the ground whatever the working conditions. Even during tight turning maneuvers at the headland, the tracks don’t drift –— so the soil remains level.

 35% more contact area provides optimum stability.

The front axle and the rear tracks, with a large angle of oscillation, easily cope with very uneven ground on farm tracks and at field entrances. That means the vehicle remains stable even when using heavy implements. Since the steering does not generate any lateral movement at the rear of the tractor, no sideways load is transmitted to the attached implements.
