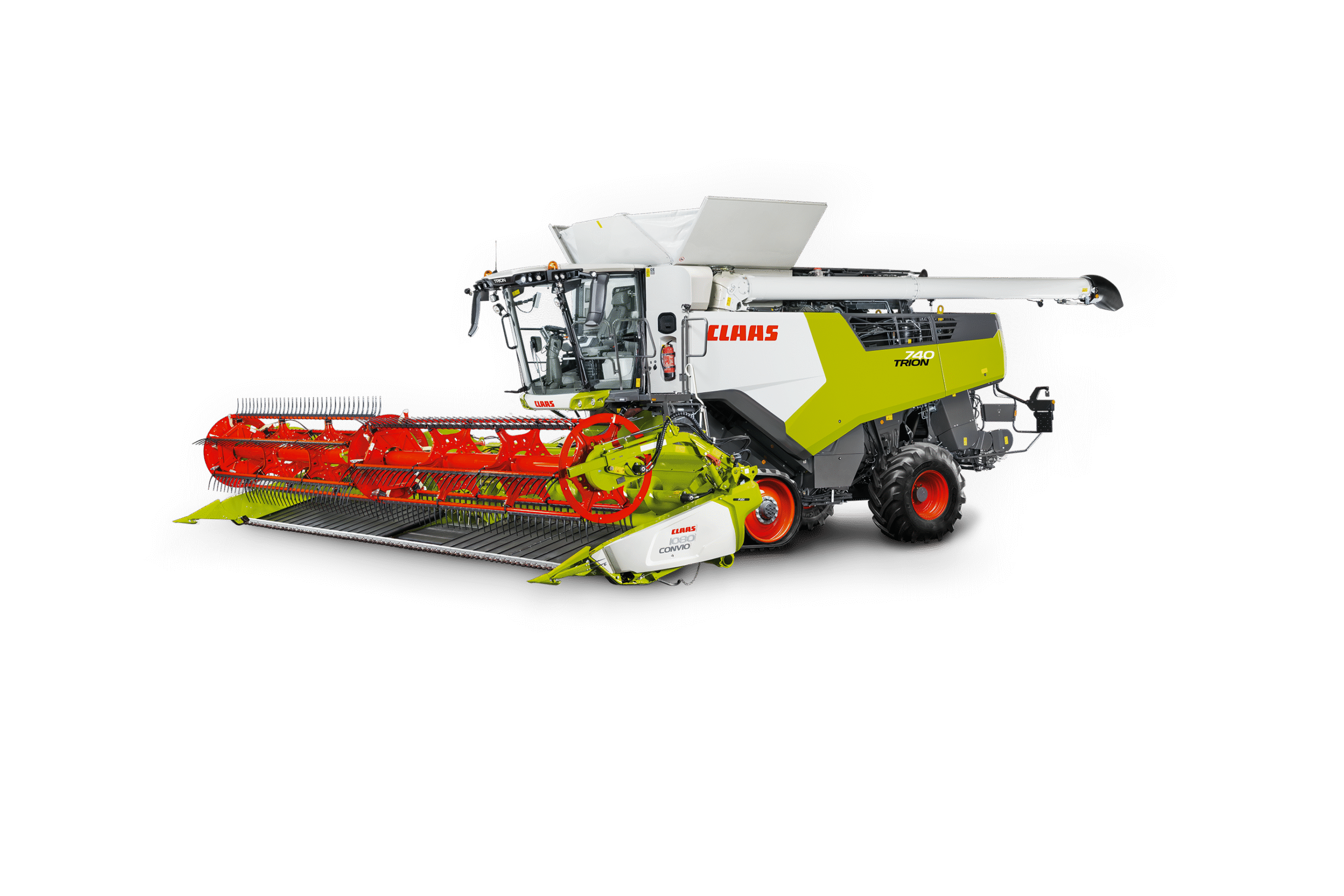

The TRION combine series

APS HYBRID SYSTEM

• The TRION 700 features the APS HYBRID threshing system that has been setting throughput records with CLAAS combines for years.
• APS HYBRID combines two innovative technologies: the APS tangential threshing system and the ROTO PLUS axial separation system. Only CLAAS combines both systems in one machine.

• The TRION 740 has a single rotor. Compared to straw walkers, the APS HYBRID SYSTEM allows a 10 times higher crop flow rate between the rotors and the concave.

• The speed of the drums in the threshing system is adjusted independently of the speed of the rotors. All of this gives you a clear competitive edge.

• You get gentle threshing at high throughput, low fuel consumption and good straw quality.

• You can adapt the entire threshing process to changing harvesting conditions throughout the day.

INTENSIVE CLEANING

• Clean grain is money in your pocket.

• The JET STREAM cleaning system, with its hydraulic fan speed variator and high-performance returns, is designed specifically to work together with the ROTO PLUS secondary separation unit.

• A dual-ventilated step enables intensive pre-cleaning.

• JET STREAM is controlled conveniently from the cab.

• You no longer have to adjust anything manually.

• As an option, you can put the JET STREAM cleaning function under the fully automatic control of CEMOS AUTO CLEANING.

RELIABLE COLLECTION

• Once the threshing unit, secondary separation and cleaning systems have done their work, the cleaned grain is collected in the automatically expanding grain tank.

• Its capacity of up to 341 bu (12,000 liters) is matched to the high throughput of the TRION.

• You can empty the grain tank at speeds of up to 2,060 gpm (130 l/s).

• The concentrated flow of grain makes it easier to reliably fill the grain tanker.

• The automatic closing flap at the end of the grain tank unloading tube ensures that nothing trickles out to prevent losses when unloading.

MORE POWER

• Cummins is the largest independent engine manufacturer in the world, producing more than 1.4 million engines annually.

• Cummins engines power more than 1,000,000 agricultural machines worldwide. They range from 55 to 4,400 horsepower.

• All TRION 700 models are equipped with the CUMMINS L9. This powerful engine meets the Stage V emission standard and provides high torque and efficient power transmission.

• In-line, 6-cylinder engine with 8.9 l displacement.

• 402 hp (300 kW) to 430 hp (320 kW).

• Reduced rated engine speed: 1,900 rpm.

• Common-rail technology with Stage V emission standard.
