The JAGUAR Forage Harvester Headers

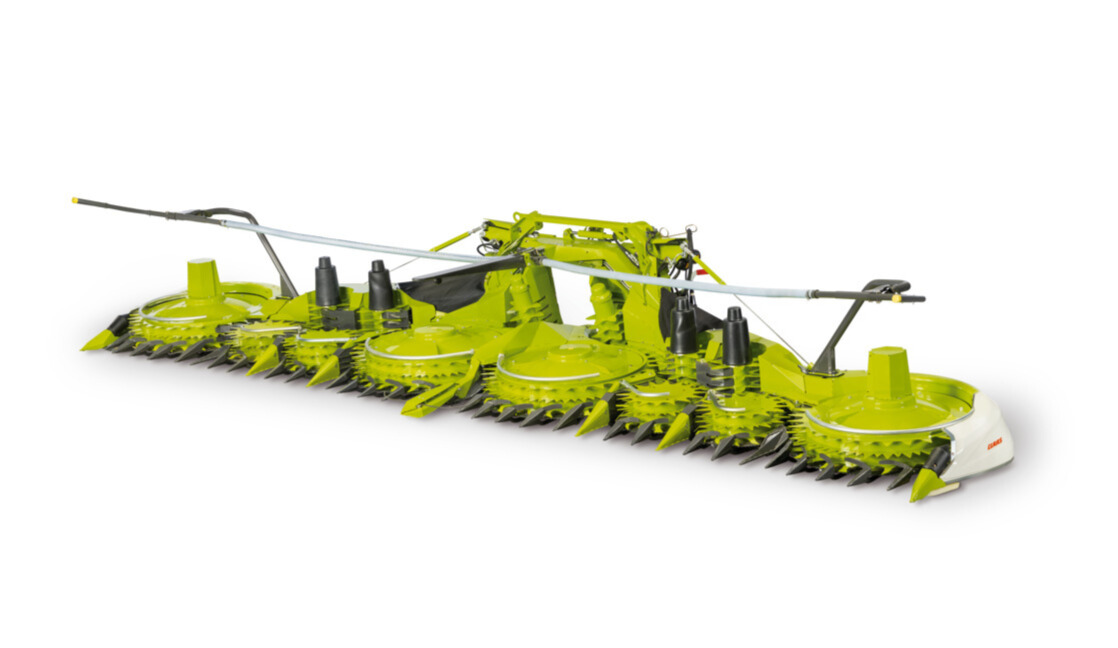

Orbis Corn Header

• Smooth-running drive with low starting torque and low power requirement

• Designed for high throughput capacity

• Universally suitable for harvesting stalked crops

• High quality of work and very low maintenance requirements

• Efficient drive concept with 11% lower starting torque than comparable models

• Unique crop flow for optimal quality of chopped material

• Optimum ground-contour following thanks to AUTO CONTOUR

• Very low stubble height across the entire working width

• Engage and reverse under full load

• Straight-line crop transfer from ORBIS to the JAGUAR forage harvester for top-quality chopped material

• Uniform crop flow across the entire width of the feed roller housing

• Extremely flat design for even stubble and very low stubble heights down to 3″ (80 mm)

• ORBIS 600 SD with small discs for short to medium crop heights

• ORBIS 600 with large discs for medium to extremely tall corn

• Folds out symmetrically within 25 secs (ORBIS 900) or 15 secs (ORBIS 750)

• Integrated transport system available with ORBIS 600 and higher

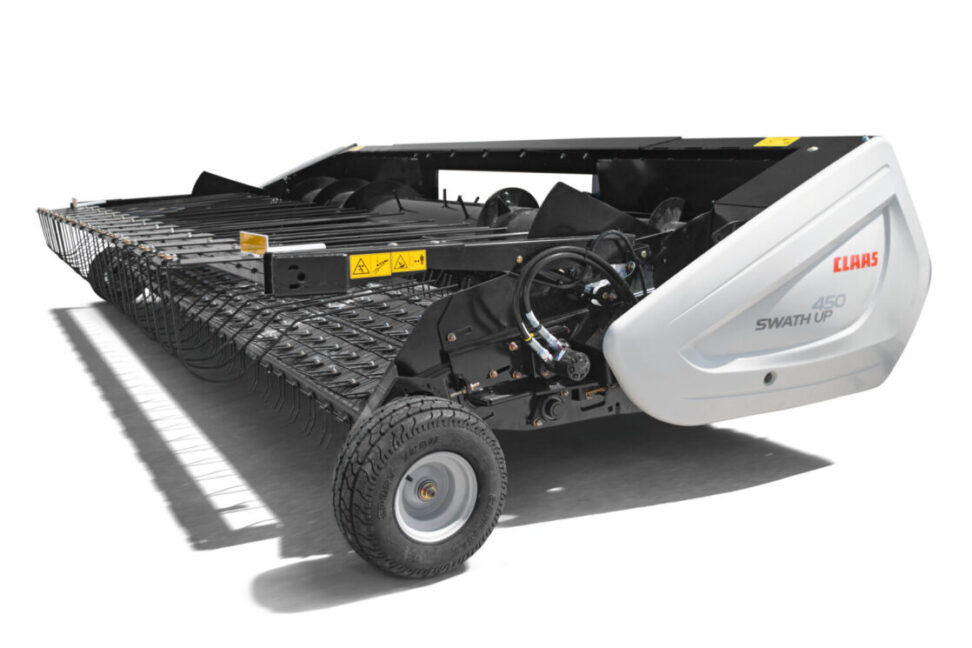

Pick Up

• Ideal following of ground contour

• Automatic speed adjustment

• Two roller crop press for optimal crop flow

• Hydraulic auger elevation for optimal accessibility when searching for foreign objects

• Automatic chain lubrication

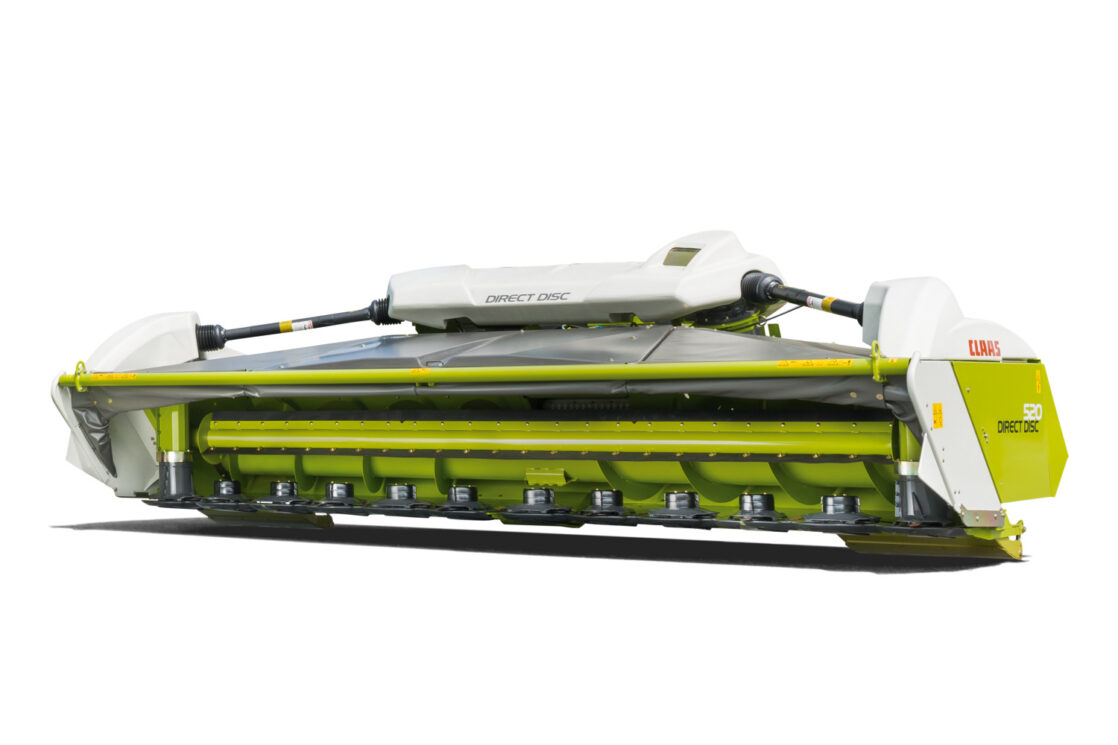

Direct Disc Direct Cut Header

• Side knives

• Can be engaged at full load: delayed activation under load is possible

• Three-speed auger gearbox: adaptable to harvest conditions of lengths of cut

• MAX CUT mower bar: equipped with quick knife change system and SAFETY LINK for safe mowing, even with short crop heights

• Paddle roller and intake auger (for 600 P / 500 P): ensure an optimal crop flow when harvesting low crop heights

• Gentle harvesting: roller crop press (for 600 / 500) feeds the crop gently and evenly to the forager

• Large intake auger provides high throughput for very tall crop heights

• Mechanical ground contour following lateral compensation and ground pressure control for excellent work quality

Earlage harvesting

• Integrated hydraulic side-to-side lateral contour for equal stubble height for hilly conditions.

• Integrated communication from header Autopilot wands to self- propelled forage harvester.

• Extra-large, heavy-duty gearbox for enhanced durability and longevity.

• Wide feeding paddle to transfer crop efficiently from header to feed rolls

• 80HD chain to enhance durability and provide longevity.
